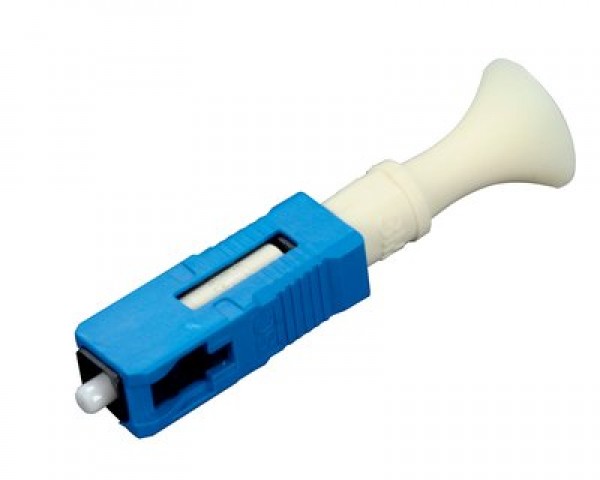

3M/Corning Volition Fiber Optic No Polish SC SM 9um Connector

Part Number: 3MF-NP8800SC-SM

In Stock

View PDF / Data Sheet

3M/Corning Volition Fiber Optic No Polish SC/UPC Connector enables fast, on-site termination of 250 µm and 900 µm connections utilizing a one piece, pre-assembled design.

The SC compatible connector consists of a factory-polished ceramic fiber/ferrule assembly  and a mechanical splice that is installed with a simple and reliable field tool. A bell-shaped boot is attached to the connector body, minimizing the chance of losing  or forgetting to terminate the boot during the connection.

To maximize field termination  yield, the splice in the connector can be opened and reused with a cap lifter. The assembly tool and cap lifter are included in every box of 60 connectors. The No Polish Connector is tested for premises and FTTP applications for indoor and outdoor locations and is available in singlemode, 62.5 µm, 50 µm and also 50 µm LOMMF (laser optimized multimode fiber) for 10 Gb applications.

The No Polish Connector is  RoHS Compliant.*
